The PlayStation 2 (PS2), a gaming console that defined a generation, was engineered from its core specifically for optimal performance on Cathode Ray Tube (CRT) televisions. Unlike modern systems built around fixed pixel grids and high resolutions, the PS2, like its analog video predecessors, operated on principles of scanlines and precise timing. While a VGA monitor could be connected for the official PS2 Linux toolkit, offering some VESA display modes, this was largely an afterthought, with commercial games rarely leveraging such capabilities. Understanding the PS2’s symbiotic relationship with CRT technology, alongside its unique hardware architecture, is crucial to appreciating its enduring legacy and the design choices that shaped its vast library of games.

Key Acronyms:

• PS2: PlayStation 2
• CRT: Cathode Ray Tube (the foundational display technology for the console)
• GS: Graphics Synthesizer (the PS2’s powerful GPU)
• PAL: European television signal standard for CRTs (50Hz)
• NTSC: American/Japanese television signal standard for CRTs (60Hz)
• CRTC: Cathode Ray Tube Controller (integrated into the PS2 GPU)
• EDTV: Enhanced Definition Television (SDTVs supporting progressive scan)
• VU0/VU1: Vector Unit 0/Vector Unit 1 (the PS2’s two SIMD coprocessors, providing a highly programmable geometry pipeline)

The PS2’s Technical Foundations: An Analog Heartbeat

At the heart of the PS2’s display capabilities was its Graphics Synthesizer (GS), equipped with a comparatively modest 4MB of embedded VRAM. This memory was often insufficient to hold a full 640×480 framebuffer, let alone larger resolutions. Sony’s messaging to developers was notable: rather than viewing this 4MB as traditional VRAM, they were encouraged to treat it as a high-speed scratchpad. Despite the limited capacity, the GS boasted unparalleled bandwidth for its time, making operations like alpha blending, multipass rendering, and framebuffer copies – typically resource-intensive on other GPUs – remarkably efficient on the PS2. This unique architecture allowed developers to push visual boundaries in ways that would have crippled contemporary hardware, with titles like Driv3r showcasing the GS’s strengths through intricate rendering techniques. Furthermore, the PS2’s fully programmable geometry pipeline, powered by its two Vector Units (VU0 and VU1), offered advanced hardware features akin to modern mesh shaders, a technology that only began appearing in PC GPUs like the Nvidia GeForce RTX 20 series nearly two decades later.

The Pursuit of Smoothness: 60fps and the Interlacing Imperative

The PS2’s hardware design subtly incentivized developers to target a consistent 60Hz/60 frames per second (fps) for NTSC regions (or 50Hz/50fps for PAL). This wasn’t necessarily a direct mandate but rather an outcome of the system’s display architecture. Early versions of the PS2’s Software Development Kit (SDK) predominantly supported interlaced scanline modes, requiring a 60Hz refresh rate to achieve a resolution like 640×448.

Developers later gained the option to choose between "frame mode" (rendering full frames) or "field rendered mode" (interlaced frames). Field rendering proved particularly attractive due to its reduced memory footprint; by rendering only half the lines per frame, memory requirements could be halved, often resulting in resolutions like 640×240 or even 512×224. This was a critical advantage given the GS’s 4MB eDRAM limitation. Beyond memory savings, field rendering also significantly cut down the time needed to render the final output image, making it an appealing choice for achieving high framerates.

However, field rendering came with a significant caveat: frame pacing. If a game failed to render a new frame in time, forcing the display of the previous frame twice, the entire image would visibly shift vertically by one scanline. This jarring visual artifact made maintaining a rock-solid 60fps (or 50fps) absolutely imperative. Consequently, many developers opted to internally slow down game logic by skipping frames when performance dips threatened, rather than allowing the framerate to fluctuate wildly and introduce image instability. Games like SSX 3 exemplify this approach, prioritizing consistent visual output over raw, uncapped framerates.

Conversely, "frame mode" rendered full frames (e.g., 640×448 or 512×448), naturally increasing rendering times and making a consistent 60fps more challenging to achieve. The system was more forgiving in this mode if a frame was missed, as the screen would simply display the second field from the previous full frame, avoiding the vertical shift inherent in field rendering.

Ultimately, for games that could sustain a consistent 60fps, field rendering on a CRT TV delivered an experience indistinguishable from a full frame to the average user. The CRT’s inherent ability to blend interlaced fields seamlessly masked the internal workings, providing a smooth, high-framerate picture. This technical reality meant that the PS2, despite its often-criticized lower resolutions, leveraged the strengths of CRT technology to deliver a superior user experience, provided developers met the stringent framerate demands. This technical coercion explains why the PlayStation 2 boasts an exceptionally large catalog of 60fps games, particularly at launch, a testament to both developer ambition and hardware-imposed necessity.

This design also sheds light on contemporary criticisms of PS2 launch titles, which were often lambasted for "jaggies" (jagged edges) and a perceived lack of anti-aliasing, especially when compared to the Sega Dreamcast. This problem was compounded by the limitations of single-frame capture technology used by many game magazines and journalists of the era. Screenshots frequently only captured half of the interlaced fields, making games appear far more jagged in print than they did on an actual CRT display. While the lower output resolutions to fit within the GS eDRAM did contribute to some visual compromises, the "jaggy" perception was often exacerbated by misrepresentation in media.

Widescreen’s Early Days: Adapting to a New Era

The early 2000s marked a pivotal shift in television technology, and the PS2 played an unexpected role in accelerating the adoption of widescreen formats. While a handful of PlayStation 1 games had experimented with widescreen, the vast majority of console titles were designed for the traditional 4:3 aspect ratio. The PS2, however, doubled as a popular DVD player, a format that heavily promoted "anamorphic widescreen." This coincided with the gradual mainstreaming of 16:9 widescreen CRT TVs in the early to mid-2000s.

Developers responded to this evolving landscape, with an increasing number of PS2 games offering built-in widescreen modes. Generally, there were three approaches to implementing widescreen:

1. Hor+ (Horizontal Plus): The ideal method, where the horizontal field of view is expanded, revealing more of the game world without cropping the top or bottom.
2. Vert- (Vertical Minus): The most common, and often least desirable, method. This involves cropping the top and bottom of the 4:3 image and then zooming in, effectively reducing the vertical field of view to fit the 16:9 aspect ratio.
3. Hor+ and Vert-: A hybrid approach, where some horizontal expansion occurs, but parts of the top and bottom are still cropped.

The majority of PS2 games adopting widescreen modes, perhaps unsurprisingly, opted for the Vert- approach. Titles like Tekken 5, and the Ratchet & Clank and Jak and Daxter series, all utilized Vert-. This "quasi-widescreen" often resulted in characters appearing larger and the player losing peripheral vertical vision, a clear compromise.

The technical reasons for the prevalence of Vert- were pragmatic. Zooming and scaling were computationally "free" on the GS, and cropping parts of the image helped ensure everything still fit within the 4MB GS VRAM. Implementing a true Hor+ widescreen mode required developers to consider increased horizontal resolution, which directly impacted VRAM usage and rendering performance. The PS2 already relied on the CRT’s ability to blend interlaced scanlines to mask lower-than-average resolutions; pushing horizontal resolution further would demand even more resources, making Vert- the path of least resistance for many studios. The enthusiast community often found widescreen implementations on 6th-generation consoles, including the PS2, to be a source of frustration due to these common compromises.

Beyond Interlaced: The Rise of Progressive Scan

The PS2’s lifecycle coincided with the twilight years of the CRT TV. As the industry began its inexorable march toward digital television (DTV) and LCD panels, TV manufacturers attempted to prolong the life of CRTs through innovations like Enhanced Definition Television (EDTV). EDTVs were essentially SDTVs capable of supporting 480p and 576p progressive scan signals. Starting around 2001, progressive scan-capable CRT TVs became available, and game developers began to incorporate support for these modes.

Accessing progressive scan typically required higher-quality analog cables: component cables for NTSC regions or RGB SCART cables for Japan and Europe. Standard composite and RF-AV cables did not support this feature. When a progressive scan-enabled game launched, users could usually activate the mode by holding specific buttons (commonly X and Triangle) during startup, prompting a choice between normal (interlaced) and progressive scan modes. Progressive scan offered significant advantages: it eliminated interlacing artifacts and provided full-height framebuffers, resulting in a cleaner, more stable image.

While progressive scan generally improved visual quality for most users, some games made a trade-off. To accommodate the larger framebuffer requirements of full-frame rendering within the GS’s 4MB eDRAM, developers occasionally reduced the framebuffer depth to 16 bits per pixel (bpp) or lower. This could lead to a slight reduction in color fidelity, manifesting as more noticeable color banding. Despite this potential compromise, the overall improvement in image clarity from progressive scan usually outweighed the minor loss in color depth.

Remarkably, some titles like Valkyrie Profile 2 and Gran Turismo 4 even offered "1080i" progressive scan modes. However, this was largely a technical illusion. The PS2 did not render at a native 1920×1080 resolution. Instead, the GS’s CRTC utilized advanced framebuffer manipulation and magnification techniques. For instance, Gran Turismo 4 internally rendered at 640×540. The CRTC would then magnify the horizontal resolution by a factor of three (640 * 3 = 1920) and the vertical resolution by a factor of two (540 * 2 = 1080) or employ an interlaced framebuffer switch. On a CRT, this "zoom scaling" could appear convincingly high-resolution at the time, but on modern displays, the native 480p progressive scan mode often looks superior.

Regional Divides: PAL, NTSC, and the European Experience

The European gaming market faced unique challenges due to the prevalence of PAL signal CRT TVs, which operated at 50Hz, in contrast to the 60Hz NTSC standard in Japan and North America. This difference led to significant issues for European gamers.

When the PS2 launched in Europe, many Sega Dreamcast games had already offered players a choice between PAL 50Hz and "PAL60" modes. PAL60, where supported by the television, provided a 60Hz image, circumventing the approximately 16.9% framerate reduction common in PAL conversions and avoiding the additional letterboxing that often accompanied PAL’s higher vertical resolution. However, many developers either lacked the system resources to fully utilize PAL’s higher resolution or simply did not prioritize the European market enough to implement proper optimizations.

The situation on PS2 was initially more complex. Sony, citing PAL60 as a non-standard format, refused to officially support it. This decision meant that most PS2 launch titles in Europe were confined to 50Hz, often resulting in slower gameplay, reduced framerates, and frequently, unattractive letterboxing. While some UK developers like Psygnosis (Wipeout), Core Design (Tomb Raider), and Rockstar/DMA Design (Grand Theft Auto) were known for their efforts in creating PAL-optimized games (sometimes offering higher scanlines and thus better image quality than their NTSC counterparts), the inherent 50Hz refresh rate still meant a slower overall experience. Though some developers attempted to compensate by tweaking game speed, the performance generally lagged behind 60Hz NTSC versions.

By 2002, a growing number of PS2 titles, such as ICO, began to offer 50Hz/60Hz selectors at startup. However, instead of switching to a "PAL60" mode, these games would often switch the console to output an NTSC 480i signal. This workaround was largely effective as many European televisions sold in the late 1990s were already capable of supporting both PAL and NTSC signals. For games that still omitted these selectors (e.g., Silent Hill 2, Metal Gear Solid 2), developers often invested more effort into crafting superior 50Hz PAL conversions, minimizing or eliminating the dreaded letterboxing.

The implementation of 50Hz/60Hz toggles was not without its difficulties for developers. Studios like Square, known for their cinematic experiences, voiced concerns about the logistical challenges of having to ship both 50Hz and 60Hz versions of their extensive, high-quality full-motion video (FMV) scenes, which would often exceed the storage capacity of a single DVD. This constraint was a key reason why titles like Final Fantasy X remained locked to 50Hz in Europe, despite growing demand for 60Hz NTSC options. Over time, however, games without these selectable refresh rate options became the exception rather than the rule.

The Great Transition: CRTs to LCDs and the PS2’s Legacy

The mid-2000s marked a significant industry-wide upheaval: the mass transition from bulky CRT televisions to sleeker, flat-panel LCD displays. This shift, occurring around 2005 as the seventh generation of consoles (PlayStation 3, Xbox 360) was on the horizon, posed considerable challenges for older, CRT-centric hardware like the PS2, which continued to sell well until late 2007.

For the upcoming HDMI-capable consoles, the transition offered clear advantages: an end to regional PAL/NTSC refresh rate disparities (games would universally output at 60Hz on HDMI displays), and the promise of native, non-interlaced high-resolution output (480p, 720p). For many consumers who had never owned a progressive scan-capable CRT, this marked their first experience with such crisp, stable images on a television.

However, early LCD HD-ready TVs were often plagued by significant issues, including high input latency, pronounced ghosting, and poor motion clarity. Game consoles designed for CRTs, particularly the PS2, frequently looked abysmal on these new displays. Visual effects that thrived on CRTs, such as "feedback blur" or motion blur, which leveraged the natural phosphorescent decay of the CRT screen to create smooth motion, appeared as distracting, smeared artifacts on early LCDs. Some games, like Soul Calibur 3, attempted to mitigate these problems with in-game settings such as "Software Overdrive" to reduce afterimage effects on LCD screens, but these were often partial solutions.

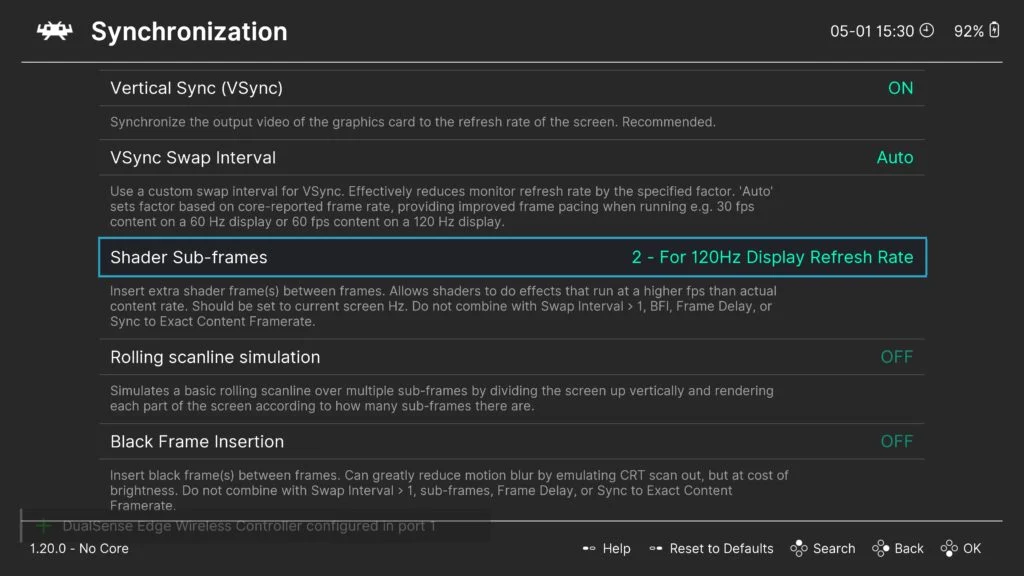

The fundamental issues of latency and motion clarity remained largely unaddressed for years. It is only in recent times, with advancements in modern display technologies like OLED and sophisticated software solutions, that the visual integrity of these classic console experiences can be truly recaptured. Innovations like BlurBusters’ "CRT beam racing simulator" shaders, when combined with advanced CRT shaders on modern OLED screens, can finally deliver near-CRT levels of latency and motion clarity, allowing enthusiasts to experience PS2 games as they were originally intended, and often, even better.

The PlayStation 2 stands as a testament to ingenious hardware design that maximized the potential of its contemporary display technology. Its deep integration with CRT principles, from its framerate demands to its resolution handling and early widescreen adaptations, shaped its identity and its vast library. While the industry has long moved beyond CRTs, understanding the PS2’s origins provides invaluable context to its enduring appeal and the complexities of console development in a rapidly evolving technological landscape.
