The PlayStation 2 (PS2) was a gaming console designed almost entirely from the ground up for optimal performance and display on Cathode Ray Tube (CRT) televisions. Unlike modern systems built around explicit pixels and resolutions, the PS2, like other analog video output consoles of its era, operated on the principles of scanlines and precise timing. While a VGA monitor could be attached for the official PS2 Linux toolkit, offering some VESA display modes, this functionality was largely an afterthought, with virtually no commercial games leveraging it. This foundational design choice, coupled with the console’s unique hardware architecture, profoundly shaped its games, visual presentation, and eventual place in gaming history.

Understanding the PS2’s Core Architecture

At the heart of the PS2’s visual prowess was its Graphics Synthesizer (GS), a highly specialized Graphics Processing Unit (GPU) that featured a modest 4MB of embedded VRAM. Sony encouraged developers to view this VRAM not as a conventional frame buffer but as a high-speed "scratchpad," emphasizing its exceptional bandwidth rather than its capacity. This approach meant that operations traditionally expensive on other GPUs, such as alpha blending, multipass rendering, and framebuffer copies, were remarkably efficient on the PS2. Games like Driv3r famously exploited these strengths, executing visual feats that would have brought competing hardware to its knees.

Further enhancing the PS2’s capabilities were its two Vector Units (VU0 and VU1), specialized SIMD (Single Instruction, Multiple Data) coprocessors that formed a fully programmable geometry pipeline. These units provided hardware features akin to modern mesh shaders, concepts that only began to reappear in PC hardware like the Nvidia GeForce RTX 20 series nearly two decades later. This innovative, yet complex, architecture presented both immense opportunities and significant challenges for game developers, driving a unique approach to visual fidelity and performance.

The Imperative of 60 Frames Per Second for Image Quality

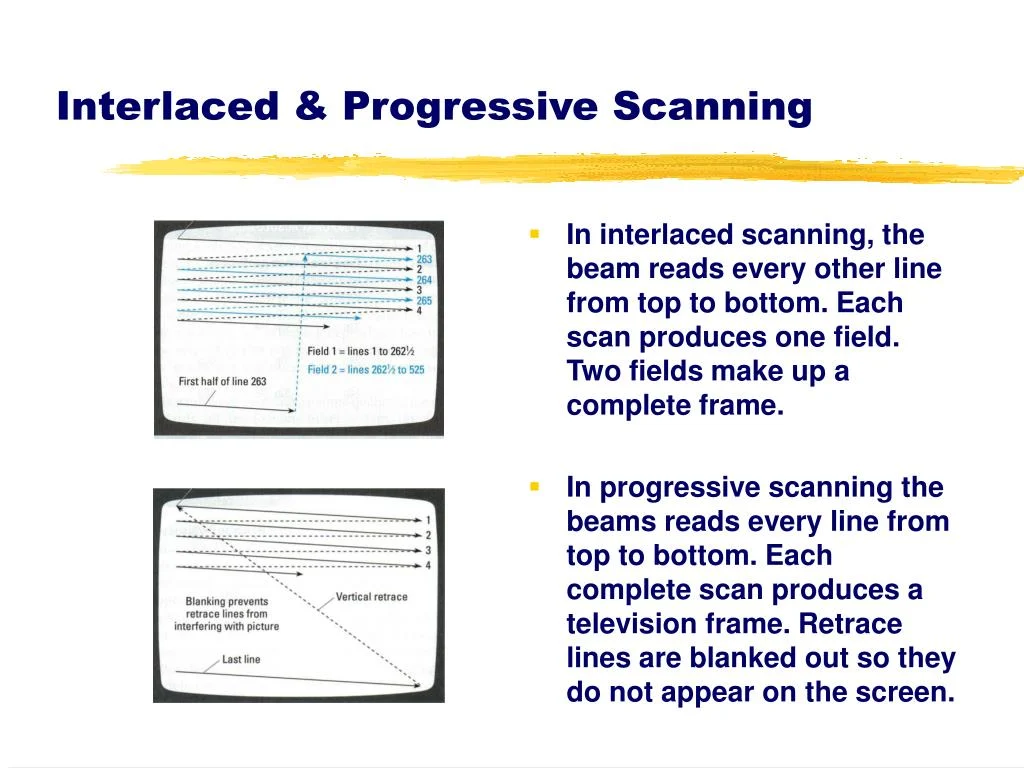

The PS2’s design subtly incentivized developers to target a consistent 60Hz/60fps frame rate for NTSC regions (or 50Hz/50fps for PAL). This was not merely a pursuit of smooth gameplay but a critical factor in maintaining acceptable image quality, particularly due to the prevalence of interlaced scanline modes. Early versions of the PS2 SDK predominantly supported interlaced modes, which required a 60Hz refresh rate to achieve resolutions like 640×448.

Developers later gained the option of either "frame mode" (rendering full frames) or "field rendered mode" (interlaced frames). Field rendering effectively halved the memory requirements per frame, rendering at resolutions such as 640×240 or even 512×224. This reduction was vital given the GS’s limited 4MB eDRAM, as it directly impacted the space available for framebuffers. Moreover, field rendering reduced the time needed to render the final output image, making it an attractive option for achieving high performance.

However, field rendering came with a significant caveat: frame drops. If a game missed its target and the previous frame had to be displayed twice, the entire image would visibly shift its vertical position by one scanline. This jarring artifact made it imperative for developers to ensure perfect frame pacing. Consequently, many games, such as SSX 3, would internally slow down the game’s logic or skip internal rendering frames to maintain a solid 60fps output rather than risking the visual glitch. Conversely, "frame mode" was more forgiving of dropped frames, simply displaying the second field from the previous frame without the disruptive vertical shift, though it demanded more rendering resources and thus made a consistent 60fps harder to achieve.

Ultimately, for games that could sustain a perfectly frame-paced 60fps, field rendering on a CRT TV delivered a visually cohesive experience. The CRT’s inherent blending of half-frames effectively masked the interlaced nature, presenting what appeared to be a full, smooth image to the end-user, who remained largely unaware of the complex internal processes. This symbiosis between the PS2’s rendering strategy and the CRT’s display characteristics allowed the console to leverage lower internal resolutions while still delivering acceptable visual quality, solidifying its reputation for a vast library of 60fps titles, especially at launch. The perception of "jaggies" (jagged edges) in early PS2 games, often highlighted in magazine screenshots, was frequently exacerbated by these publications capturing only a single field of an interlaced frame, misrepresenting the actual on-screen appearance on a CRT.

The Evolution of Widescreen on CRTs

While most console games before the PS2 era were designed for the traditional 4:3 aspect ratio, the PS2’s dual role as a DVD player significantly accelerated the adoption of widescreen (16:9) displays. The term "anamorphic widescreen" entered common parlance, and 16:9 CRT televisions began to gain mainstream traction in the early to mid-2000s. As demand grew, more PS2 games started offering built-in widescreen modes, though their implementation varied.

Generally, widescreen modes could be achieved in three ways: Hor+ (horizontal plus, extending the horizontal field of view), Vert- (vertical minus, cropping the top and bottom of the image), or a combination of both. Unsurprisingly, a majority of PS2 games opted for the Vert- approach. This method was less resource-intensive, as cropping parts of the image and then slightly zooming in the center was easier on the GS’s limited 4MB VRAM. Scaling operations were "free" on the GS, making Vert- a straightforward solution for developers. Popular titles like Tekken 5, Ratchet & Clank, and Jak and Daxter series notably employed Vert- implementations, resulting in a "quasi-widescreen" experience where players gained no additional peripheral vision but instead saw a zoomed-in, cropped view.

True Hor+ widescreen, which renders more of the game world by extending the horizontal field of view, required developers to allocate more horizontal resolution and manage VRAM more meticulously. Given the PS2’s reliance on CRT blending to mask lower resolutions, expanding the horizontal image without a corresponding increase in resolution could degrade image quality. Enthusiasts, often frustrated by these Vert- implementations, have since developed internal patches (such as those in the LRPS2 core) to force Hor+ modes, revealing the full extent of the game world that was often rendered but simply cropped from view.

The Dawn of Progressive Scan and EDTVs

The PS2 arrived as CRTs were nearing the end of their dominance, coinciding with the emergence of Enhanced Definition Television (EDTV) technology. EDTVs were essentially advanced SDTVs capable of displaying 480p (NTSC) and 576p (PAL) progressive scan signals. Starting around 2001, progressive scan-capable CRT TVs became available, allowing games to leverage non-interlaced, full-frame display modes.

To utilize progressive scan, users typically required either component cables (in NTSC regions) or RGB SCART cables (in Japan and Europe), as composite and RF-AV connections did not support this feature. Games supporting progressive scan would prompt the user to select between normal (interlaced) and progressive scan modes, often by holding specific button combinations (e.g., X and Triangle) at startup. The primary benefit was the elimination of interlacing artifacts and the rendering of full-height backbuffers, resulting in a cleaner, more stable image.

However, some progressive scan implementations involved trade-offs. To accommodate the larger framebuffers required for non-interlaced rendering within the 4MB GS eDRAM, some games reduced the framebuffer depth to 16 bits per pixel (16bpp) or lower. This compromise, while removing interlacing artifacts, could lead to increased color banding in the final output. Despite this, most users found progressive scan visually superior.

A notable example of pushing resolution boundaries was the "1080i" mode offered by games like Gran Turismo 4 and Valkyrie Profile 2. This was, however, a clever technical illusion rather than true 1920×1080 resolution. For instance, Gran Turismo 4 internally rendered at 640×540. The GS’s Cathode Ray Tube Controller (CRTC) then magnified this image: the horizontal resolution (640) was scaled by a Magnification Integer (MAGH) of 3 (640 3 = 1920), and the vertical resolution (540) was scaled by a MAGV of 2 (540 2 = 1080) or through an interlaced framebuffer switch. This "GS CRTC zoom scaling" created a convincing high-resolution effect on CRTs, though 480p progressive scan often looks better on modern displays.

Regional Disparities: The PAL/NTSC Divide

European PS2 users faced additional challenges related to the regional television standards. While Japan and the United States adhered to the 60Hz NTSC standard, Europe primarily used the 50Hz PAL signal. This difference created significant performance discrepancies. The Sega Dreamcast, a contemporary console, had already offered PAL60 modes, providing a 60Hz image on compatible TVs and avoiding the 16.9% frame rate reduction inherent in many PAL conversions, along with the associated letterboxing (due to PAL’s higher vertical resolution often not being fully utilized by developers).

The situation for the PS2 was more complicated. Sony initially refused to officially support PAL60, as it was not a recognized standard. This meant that most early PS2 launch titles in Europe were locked to 50Hz, resulting in slower gameplay and often letterboxed images. Developers from the UK, such as Psygnosis (Wipeout, Destruction Derby), Core Design (Tomb Raider), and Rockstar/DMA Design (Grand Theft Auto), were known for their efforts in optimizing PAL versions. These optimizations often involved rendering more scanlines than the NTSC version, potentially offering better image quality, but the games still ran slower. Some developers attempted to compensate by adjusting game speed, but the 50Hz versions were generally considered inferior to their 60Hz NTSC counterparts.

Around 2002, the situation began to improve. More games, like ICO, started offering 50Hz/60Hz toggles at startup. Instead of switching to a PAL60 mode, the PS2 would switch to an NTSC 480i mode, which most European TVs from the late 1990s onward could support. Developers like Square, however, faced unique challenges. Shipping both 50Hz and 60Hz versions of their extensive, high-quality full-motion video (FMV) scenes proved too costly in terms of DVD space. This constraint led games like Final Fantasy X to remain 50Hz-only despite growing demand for 60Hz options. Eventually, games without these regional toggles became the exception rather than the rule, marking a significant improvement for European gamers.

The Rough Transition to LCDs and Modern Revival

The mid-2200s saw a pivotal shift in display technology as the industry transitioned from CRTs to LCD televisions, coinciding with the launch of seventh-generation consoles like the PlayStation 3 and Xbox 360. For these new consoles, the move was largely advantageous: HDMI connectivity, universal 60Hz output, and native non-interlaced high resolutions became standard. Many consumers, who had never owned a progressive scan-capable CRT, experienced 480p or 720p images for the first time.

However, this transition was particularly harsh for older, CRT-based consoles like the PS2. Early LCD and "HD-ready" TVs were often plagued by poor image quality, high input latency, and significant ghosting (motion blur). Visual effects designed for CRTs, such as the "feedback blur" used extensively in many PS2 games for motion blur, looked disastrous on these new displays. Some developers attempted to mitigate these issues; Soul Calibur 3, for instance, included a "Software Overdrive" setting to reduce afterimage effects on LCD screens.

Despite these efforts, fundamental issues like input latency and motion clarity persisted for decades when playing PS2 games on non-CRT displays. It is only in recent years, with advancements in display technology and emulation techniques, that these problems are being effectively addressed. Modern OLED screens, combined with technologies like BlurBusters’ "CRT beam racing simulator" shaders, now allow enthusiasts to enjoy near-CRT levels of latency and motion clarity, alongside advanced CRT shaders that replicate the aesthetic nuances of the original displays. This technological evolution has brought the PS2’s unique visual legacy full circle, allowing its games to be experienced with unprecedented fidelity on contemporary hardware.

The PlayStation 2’s design philosophy, deeply rooted in the analog world of CRT televisions, shaped not only its technical development but also its enduring cultural impact. Its unique hardware architecture, the forced pursuit of consistent frame rates, the evolving approach to widescreen, and the challenges of regional display standards all contributed to a console that was both technically idiosyncratic and immensely successful. These fascinating design choices continue to be explored and appreciated by enthusiasts, highlighting the ingenuity and compromises that defined a pivotal era in video game history.
