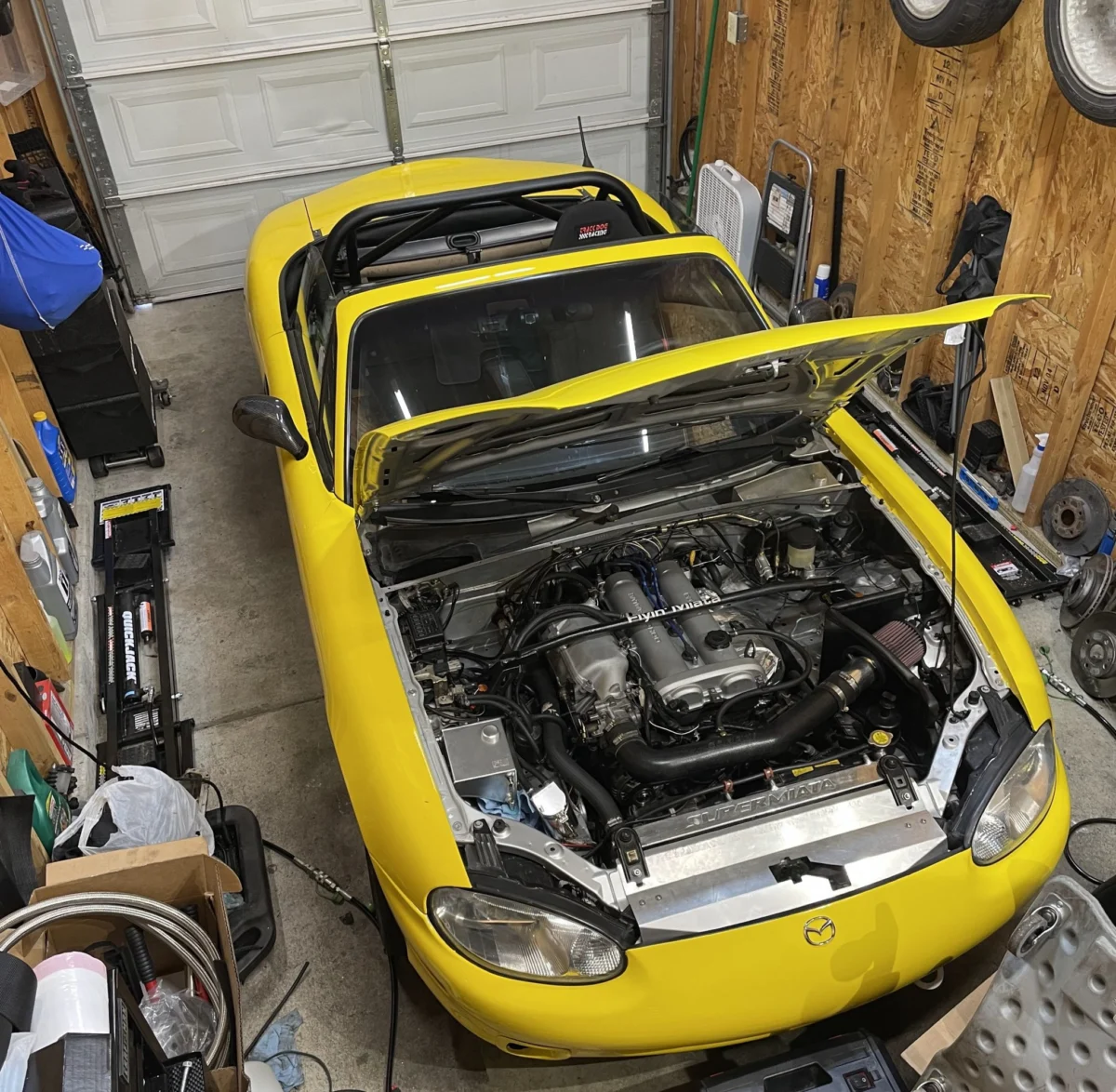

Project Scope and Objectives
The primary objective of the overhaul was to address the "unknown maintenance history" typical of high-mileage NB Miatas. In many instances, original components such as wheel hubs and control arm bushings remain in service long after their effective lifespan has expired. By replacing these parts with a combination of OEM-equivalent and high-performance aftermarket solutions, the project aimed to establish a new "service zero" baseline.
Key upgrades included the installation of IL Motorsports stiffer control arm bushings, Supermiata front-end service kits, Centric front hubs, and Treasure Coast Miata rebuilt rear uprights. The centerpiece of the mechanical upgrades featured the installation of Supermiata Xida Race coilovers and a conversion from an open differential to a 4.30-ratio Torsen Limited-Slip Differential (LSD). This holistic approach ensures that the vehicle can handle the increased loads generated by high-performance tires and aggressive cornering speeds.
Technical Chronology of the Suspension Refresh
The overhaul was conducted during a scheduled winter maintenance period, a strategy commonly employed by enthusiasts to avoid downtime during the peak racing season. The timeline began with the complete disassembly of the front and rear suspension corners, allowing for a thorough inspection of the subframes and mounting points.
Control Arm Rehabilitation and Bushing Dynamics
A critical decision in any Miata refresh involves the choice of bushing material. While polyurethane is a common choice for track cars due to its rigidity, it often requires periodic lubrication to prevent squeaking and can lead to a harsh ride. For this project, the builder opted for IL Motorsports performance rubber bushings. These units provide a stiffness profile similar to the discontinued Mazdaspeed competition parts—offering roughly a 30% to 40% increase in durometer over stock—while retaining the maintenance-free longevity of rubber.
During the installation phase, a significant technical hurdle was encountered regarding the rear upper control arms. The use of a hydraulic press without proper internal bracing can lead to the deformation of the arm’s stamped steel structure. Industry experts suggest the "threaded rod and washer" method for these specific components to ensure that the force is localized on the bushing sleeve rather than the arm itself. This error necessitated the procurement of replacement arms, highlighting the narrow tolerances involved in suspension work.
Front-End Precision and Hub Reliability
The front suspension received a Supermiata service kit, which includes upper and lower ball joints and tie-rod ends. These components are essential for maintaining correct steering geometry and preventing catastrophic failure under high lateral G-loads. Simultaneously, the front hubs—a known weak point on the MX-5 platform when subjected to heat and stress—were replaced with Centric units.
In the rear, the project utilized rebuilt knuckles from Treasure Coast Miata. These units come pre-pressed with new bearings and hubs, significantly reducing the labor hours required and eliminating the risk of bearing damage during DIY installation. This "plug-and-play" approach is increasingly favored by enthusiasts who lack specialized industrial pressing equipment.
Drivetrain Enhancement: The Torsen Differential Conversion
The transition from a standard open differential to a Torsen (Torque-Sensing) LSD is widely considered the most impactful drivetrain modification for the NB Miata. The project involved sourcing a 4.30-ratio Torsen unit, a configuration highly sought after for its ability to maximize the acceleration of the Miata’s relatively low-torque engine.
Mechanical Integration and Bushing Upgrades
The installation process required the removal of the Power Plant Frame (PPF), a structural member that connects the transmission to the differential. This phase revealed common mechanical "bottlenecks," specifically the specialized PPF bolts which are notorious for seizing due to galvanic corrosion. To resolve this, the project utilized a replacement PPF and new hardware, ensuring the drivetrain alignment remained within factory specifications.
To complement the LSD, polyurethane differential bushings were installed. Unlike the control arm bushings, polyurethane is preferred here because it minimizes "diff-hop" and keeps the drivetrain stabilized during hard shifts and high-torque exits from corners. The installation of these bushings required the destructive removal of the original rubber units, a process involving drilling and manual extraction, further underscoring the labor-intensive nature of the project.
Advanced Damping: Supermiata Xida Race Coilovers
The most significant performance gains were attributed to the Supermiata Xida Race coilovers. Developed specifically for the Miata chassis, these dampers utilize a large-diameter internal piston and sophisticated valving to provide high-frequency response. The configuration chosen featured an 800 lbs/in front and 500 lbs/in rear spring rate, supported by helper springs to maintain spring seat contact during full droop.
Performance Analysis and Ride Quality
Traditional wisdom suggests that spring rates of this magnitude would be intolerable on public roads. However, the Xida dampers utilize advanced valving that allows for a "dual-purpose" character.
- Body Roll Reduction: The stiffer springs substantially reduced lateral pitch during turn-in, keeping the tire contact patch flat against the pavement.
- High-Speed Stability: On the street, the "floaty" sensation associated with aged OEM shocks was eliminated. The vehicle demonstrated improved tracking at highway speeds, a result of the dampers’ ability to settle the chassis quickly after undulations.
- Adjustability: The single-adjustable damping allows the user to soften the ride for commutes or stiffen it for competitive environments, providing a versatility that budget-oriented "eBay coilovers" cannot match.
Data and Specifications Table
| Component | Specification | Benefit |
|---|---|---|
| Control Arm Bushings | IL Motorsports Rubber | 40% stiffer; maintenance-free |
| Spring Rates | 800 lbs/in (F) / 500 lbs/in (R) | Eliminated body roll; improved turn-in |
| Differential | 4.30 Torsen Type 2 | Improved traction on corner exit |
| Differential Bushings | Polyurethane | Reduced drivetrain movement/shudder |
| Front Hubs | Centric High-Carbon | Increased reliability for track use |
| Ride Height | ~12.5" (F) / 12.75" (R) | Lower center of gravity; optimized aero |
The Sway Bar Debate: Independent vs. Linked Suspension
A notable decision in this refresh was the retention of the factory sway bars. In the Miata community, there is an ongoing debate regarding the use of oversized sway bars versus stiffer springs. While a thicker front sway bar is a cost-effective way to reduce roll, it can also reduce the independence of the suspension, leading to a loss of grip on uneven surfaces.
The project lead noted that with 800/500 spring rates, the "roll couple" is already significantly managed by the springs themselves. By keeping the stock bars, the car maintains a degree of compliance that is beneficial for Nebraska’s varied road surfaces. Future adjustments may include adjustable endlinks to tune out any preload in the suspension, but for the initial phase, the stock bars provide a predictable, slightly understeering safety margin.
Broader Implications and Industry Context
This comprehensive overhaul highlights a growing trend in the "Youngtimer" car market, where owners are investing amounts that often exceed the vehicle’s market value to achieve modern performance standards. The availability of high-quality, chassis-specific parts from vendors like Supermiata and Flyin’ Miata has allowed the NB platform to remain competitive against much newer sports cars.
From a journalistic perspective, the project serves as a case study in mechanical triage. By prioritizing "wear items" (bushings, joints, hubs) alongside "performance items" (LSD, coilovers), the builder ensures that the performance upgrades do not prematurely wear out the aging chassis. The success of the Xida installation, in particular, reinforces the "buy once, cry once" philosophy in automotive tuning—investing in high-end damping pays dividends in both safety and enjoyment.
Conclusion and Future Outlook
The modernization of this NB Miata’s suspension has transformed the vehicle from a dated commuter into a precision instrument. While the immediate impact is felt in the car’s "planted" feel on the street, the true test will occur during the upcoming track and autocross season. The combination of a Torsen LSD for power delivery and Xida coilovers for mechanical grip creates a platform that is greater than the sum of its parts. As the project moves into its next phase—likely involving final alignment tuning and perhaps aerodynamic enhancements—it stands as a testament to the enduring engineering potential of the Mazda MX-5.
